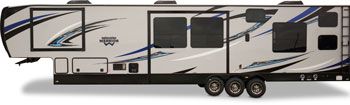

weekend warrior toy hauler 5th wheel exterior

Many of our Toy Hauler 5th Wheel options we make standard

Shopping for a new toy hauler 5th wheel can be a dizzying experience. With so many choices, how is a buyer to know which is the better value, the better choice, the one toyhauler 5th wheel that stands above the others? Simple: Weekend Warrior toyhauler 5th wheel designs its toy hauler 5th wheels so that the user experience is better than any the competition can offer. Where our competitors see important items as options or can't offer them at all, Weekend Warrior toyhauler 5th wheels offers them as standard equipment. We take much of the guess work - and incremental expenditures for options - out, and leave the necessities in. The result? A Weekend Warrior toyhauler 5th wheel that is great looking and functional. Standard!


5th Wheel Toy Hauler Standards


  • 3000 lb Ramp Door
  • 12" I Beam Powder Coated Steel Frame
  • Deluxe Fender Skirts
  • Equa-Flex Suspension System
  • 6-Point Hydraulic Leveling System - Automatic
  • Aluminum 8-Lug Wheels
  • Standard Fixed Pin Box


  • Seamless High Gloss Fiberglass Sidewalls
  • Frameless Tinted Exterior Windows
  • Vacuum Bond Laminated High Strength Low Allow Lightweight Steel Welded Floor
  • Vacuum Bond Laminated Aluminum Sidewalls & Roof construction
  • Seamless Radius Wrap Around Fiberglass Front Cap
  • Heated & Enclosed Under Carriage
  • Wrap Around 1-Piece TPO Roof
  • Deluxe Exterior Graphics Package
  • Pass Through Storage
  • Electric Power Awnings w/LED Lights
  • LED Exterior Lights
  • Detachable 50-AMP Power Cord
  • Slam Door Latches
  • 40 Gallon Fuel Fill Station w/ Static Line
  • Rain Gutters w/ Spouts
  • Spare Tire G-Rated
  • Slide Toppers - on Driver Side Slides

Heating and Cooling

  • (1) 13,500 BTU Roof A/C in Bedroom
  • (1) 15,000 BTU A/C in Living Room
  • HVAC Ducted A/C System in Living Room, Bath, Bedroom and Loft
  • 40,000 BTU Furnace
  • Above Floor Heat Ducts
  • (2) Vapor Vents
  • Heated Garage
  • Maxx Air Fan w/ Rain Sensor in Kitchen


  • 32" LED TV in Bedroom
  • Ultra Fine LED Optic Lighting (All Sides)
  • LED Lighting Throughout
  • 50 Amp / 12 Volt Distribution Panel
  • 50 Amp / 12 Volt Power Converter
  • On Demand Water Heater
  • Lighted Storage Compartments
  • Deluxe Sound Entertainment System w/ CD-AM/FM-DVD-USB, Bluetooth in Garage
  • 50" LED TV in Living Room
  • Electric Power Rear Bunk and Jack Knife Sofa
  • All-Weather Outdoor Speakers
  • Satellite Capable


  • *Fresh Water Tank – 170 Gallons
  • *Gray Tank – 50 Gallons (2 tanks)
  • *Black Tank – 50 Gallons (2 tanks)
  • (2) LP Tanks – 30 Gallon Capacity
  • Garage Length
    • 14' 4" (4250W)


  • Large Medicine Cabinet
  • Vessel Sink
  • Power Vent in Commode Area
  • Porcelain Toilet
  • Towel Rack
  • Stainless Steel Shower Head
  • Tub/Shower Combo w/Glass Shower Doors (4250W)
  • 1/2 Bath (4250W only)


  • (2) Extra Wide Entry Door w/ Assist Handles
  • Electric Queen Rear Bed w/ Sofa
  • Residential King Deluxe Mattress (4250W)
  • Residential Queen Bed (4620W)
  • Sleek Residential Faucet w/ Sprayer
  • Premium High Performance ultra Fabric
  • Booth Dinette w/ Locking Storage (4250W)
  • Villa International Sofas (4250W)
  • Diamond Plate TPO Garage Floor


  • Four Door 12 CF Refrigerator
  • LP Gas Tank & Leak Detector
  • Carbon Monaxide Detector
  • 3-Burner Range
  • Residential Microwave
  • Under Microwave Range Vent
  • Electric Fireplace in Living Room


  • Full Length Closet
  • Pleated Night Shades
  • Window Treatments
  • Deluxe Cabinetry (Warrior Grey)
  • Nickel Pull Handles
  • Upgraded BEAU Flooring
  • Solid Surface Kitchen Countertops
  • Solid Surface Night Stands & Dresser Top (bedroom)
  • Dual Metal Drawer Guides
  • Custom Control Panel
  • Loft w/ Powered Vent, Reading Lights & Window
  • Laminate Countertops-Bedroom/Dining Table/Bathrooms/Garage


  • Quad Aluminum Entry Steps
  • Exterior Utility Roof Ladder
  • RV Starter Kit
  • Exterior Wash Station w/ Hose
  • Large Tool Box in Beavertail
  • Garage D-Ring Tie Downs
  • Stackable Washer/Dryer Prep

*Nominal capacity is the volume of the tank when it is filled to the brim
Note: All Weights of trailers are approximate and w/ standard features only. When adding options this will increase trailer weight and decrease cargo carrying capacity. Allow for water and fuel and remember to disperse cargo adequately. Information supplied by The RV Factory. and is subject to change without prior notice.

5th Wheel Toy Hauler Specifications

Model 4250W 4620W
Type 5th Wheel Toy Hauler 5th Wheel Toy Hauler
Width 102" 102"
Hitch Weight 3,200 lb 3,200 lb
GVWR 21,000 lb 24,000 lb
Dry Weight *14,900 lb *14,900 lb
Total Length 44' 46'
Grey/Black *50/50 (2 each) gal *50/50 (2 each) gal
Fresh Water *170 gal *170 gal
Pump Station/gen. fuel tank (optional) 40/18 gal  40/18 gal
L.P. Gas Capacity (2) 30 lb (2) 30 lb
Axles (3) 8000 lb each (3) 8000 lb each
Ramp Door 3000 lb 3000 lb
Nitro Filled High Pressure G-Rated Tires 16" 16"
Awnings w/LED Lights 2 2
Water Heater Tankless Tankless
Furnace 40,000 BTU 40,000 BTU
A/C 13,500 BTU in Bedroom/15,000 BTU in Living Room 13,500 BTU in Bedroom/15,000 BTU in Living Room
Refrigerator 12 CU FT 12 CU FT
Microwave Residential Convection Microwave Residential Convection Microwave
Electric 50 Amp Service 50 Amp Service
Converter 50 Amp 50 Amp
Bed Size King Queen
Construction Vacuum Bond Laminated Welded Aluminum Walls and Roof, High Strength, Low Alloy Steel Floor (Exclusive to Weekend Warrior) Vacuum Bond Laminated Welded Aluminum Walls and Roof, High Strength, Low Alloy Steel Floor (Exclusive to Weekend Warrior)
Slide Rooms 3 3
Garage Length 14' 4" 20'
Garage Width/with fold-out sofa  86" 86"
Garage Opening W/H 92 wide x 95 high 92 wide x 95 high

*Nominal capacity is the volume of the tank when it is filled to the brim
*Dry Weight is without options
